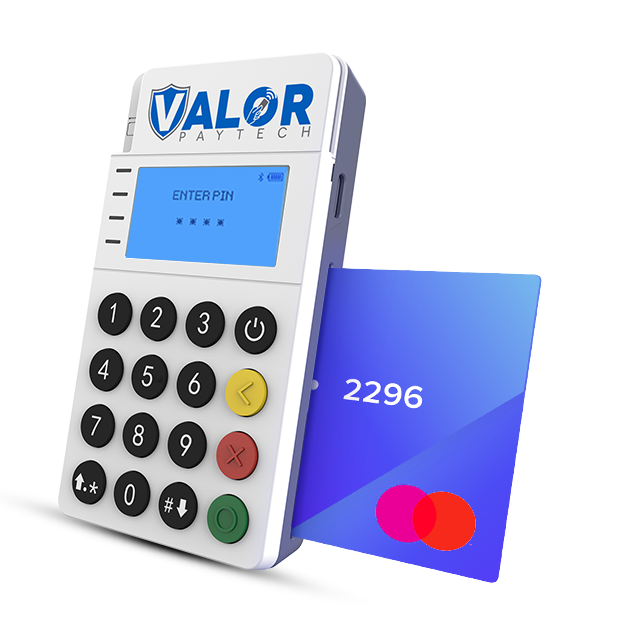

Valor RCKT Mobile POS Technical Characteristics

Please refer to the Hardware Matrix for the Valor RKCT Mobile POS to verify additional compatibility by partner.

Category	Details
CPU	32-bit high-performance secure processor
OS	RTOS (proprietary)
Memory	Required: 512KB SRAM, 512KB* + 4MB FLASH Optional: 512KB SRAM, 512KB* + 8MB FLASH
Display	1.7-inch monochrome LCD, 128 × 64 resolution with backlight
Wireless Communication	Bluetooth 4.2
Magnetic Card Reader	Optional; triple track, bi-directional, conforms to ISO 7810/7811/7813
Smart Card Reader	EMV L1/L2; conforms to ISO 7816; 1.8V/3V/5V; synchronous & asynchronous; T=0 & T=1
Contactless Card Reader	EMV Contactless L1; conforms to ISO 14443 Type A/B; Mifare; Felica
Audio	Built-in buzzer
Peripheral Ports	1 × USB Type-C for charging and communication
Keypad	10 × alphanumeric keys, 5 × function keys, 1 × power button
Battery	Li-ion, 3.7V / 470mAh / 1.74Wh
Power Supply	5V DC, 0.5A
Dimensions (mm)	102.7(L) × 55.8(W) × 16.5(H)
Weight	100g (including battery)
Environment	Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: −20°C ~ 70°C (−4°F ~ 158°F) Relative Humidity: 10% ~ 90% (non-condensing)
Certifications	PCI PTS 5.x, EMV L1/L2, EMV Contactless L1, PayPass, payWave, American ExpressPay, Discover D-PAS, TQM, CE, RoHS

Resources

This article details the RCKT Mobile POS specifications, covering its high-performance processor, Bluetooth connectivity, card reader types, keypad layout, battery capacity, and certification compliance.
