VL100 Pro Dual Pricing QRG

1. Enter Transaction Amount and press OK.
2. Swipe/Insert/Tap card on Present Card screen or start typing card number for Manual Entry.
3. Sign and Tip if prompted.
4. Select receipt delivery method.

1. Tap the Menu icon (≡).
2. Tap Option 1 (Payment).
3. Tap either EBT Food or EBT Cash.
4. Tap Sale.
5. Enter Transaction Amount and press OK.
6. Swipe/Insert/Tap card on Present Card screen or start typing card number for Manual Entry.
7. Select receipt delivery method.

1. Tap the Menu icon (≡).
2. Tap Option 1 (Payment), tap Card then tap Void.
3. Select Tran Number or Card Number.
   • If Tran Number, enter transaction number.
   • If Card Number, enter last 4 digits of card.
4. Transaction will appear on screen. Press OK to void the transaction.
5. Select receipt delivery method.

1. Tap the Menu icon (≡).
2. Tap Option 1 (Payment), tap Card then tap Refund.
3. Enter Refund Amount and press OK.
4. Swipe/Insert/Tap card on Present Card screen or start typing card number for Manual Entry.
5. Select receipt delivery method.

• REPRINT RECEIPT — Print receipt for last transaction.
• SETTLEMENT — Option to settle the current batch.
• TIP ADJUST — Adjust tip amount for transactions in open batch.
• REPORTS — View summary report for open batch, last settled batch, and detailed reports for the last 5 batches settled.
• CHANGE PASSWORD — Set one general password or create custom passwords for settlements, voids/refunds & removing custom fee.
• DOWNLOAD PACKAGE — Applies parameter changes or updates version on device.
• COMM CONFIG — Configure your internet connection settings.
• REBOOT — Power cycles device.
• REMOTE DIAGNOSTICS — Allows ISO to remotely troubleshoot the device.

1. From the Home Screen, tap (★) 7 Comm Config.
2. Tap Comm Config, tap WiFi, tap the SSID, then tap Configure.
3. Enter WiFi Password (case sensitive).
4. Tap OK to confirm, press the Cancel button, then tap Connect.

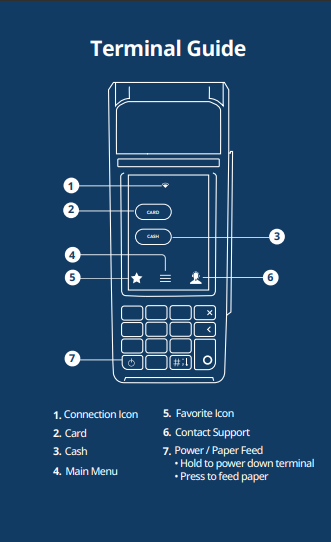

To fast swap connection, tap Connection Icon (see Terminal Guide for location).
