Valor VP100 with Dual Pricing

This article provides Quick Reference Guides for the VP100 terminal, outlining terminal button flows and step-by-step payment procedures. The application supports Dual Pricing, Cash Discounting, and Surcharging, enabling users to process transactions efficiently and accurately.

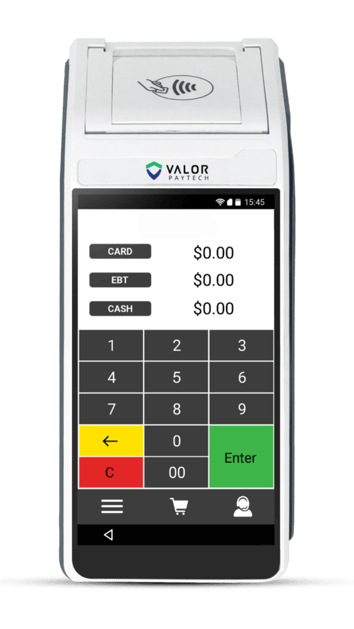

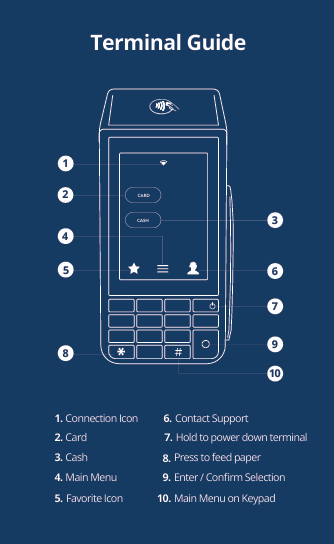

VP100 Terminal Guide VP100 Terminal Image
CARD SALE AND CASH SALE
  1. Enter Transaction Amount and press OK.
  2. Swipe/Insert/Tap card on Present Card screen or start typing card number for Manual Entry.
  3. Sign and Tip if prompted.
  4. Select receipt delivery method.
↑ Back to Top
EBT FOOD/CASH SALE
  1. Tap the Menu icon (≡).
  2. Tap Option 1 (Payment).
  3. Tap either EBT Food or EBT Cash.
  4. Tap Sale.
  5. Enter Transaction Amount and press OK.
  6. Swipe/Insert/Tap card on Present Card screen or start typing card number for Manual Entry.
  7. Select receipt delivery method.
↑ Back to Top
CREDIT VOID
  1. Tap the Menu icon (≡).
  2. Tap Option 1 (Payment), tap Card, then tap Void.
  3. Select Tran Number or Card Number.
    • If Tran Number, enter the transaction number.
    • If Card Number, enter the last 4 digits of the card.
  4. Transaction will appear on screen. Press OK to void the transaction.
  5. Select receipt delivery method.
↑ Back to Top
CREDIT REFUND
  1. Tap the Menu icon (≡).
  2. Tap Option 1 (Payment), tap Card, then tap Refund.
  3. Enter Refund Amount and press OK.
  4. Swipe/Insert/Tap card on Present Card screen or start typing card number for Manual Entry.
  5. Select receipt delivery method.
↑ Back to Top
⭐ FAVORITES MENU
  • REPRINT RECEIPT — Print receipt for last transaction.
  • SETTLEMENT — Option to settle the current batch.
  • TIP ADJUST — Adjust tip amount on transactions performed within current batch.
  • REPORTS — See summary reports for current open batch, the last settled batch, and detailed reports of the last 5 batches settled.
  • CHANGE PASSWORD — Set one general password or create custom passwords for settlements, voids/refunds & removing custom fee.
  • DOWNLOAD PACKAGE — Applies parameter changes or updates version on device.
  • COMM CONFIG — Configure internet connection settings.
  • REBOOT — Power cycles device.
  • REMOTE DIAGNOSTICS — Allows ISO to remotely troubleshoot the device.
↑ Back to Top
📶 CONNECT TO WIFI
  1. From the Home Screen, tap (★) 7 Comm Config.
  2. Tap Comm Config, tap WiFi, tap the SSID, then tap Configure.
  3. Enter WiFi Password. Note: WiFi Password is case sensitive.
  4. Tap OK to confirm, press the Cancel button, then tap Connect.

Quick Swap: To fast swap connection, tap the Connection icon (see Terminal Guide for location).

↑ Back to Top

Downloadable Resources

Note: Looking to better understand the Valor VP100 and its capabilities? All Quick Reference Guide resources mentioned here are available for download. Perfect for sharing with your merchants or reviewing offline to see how the VP100 can streamline your payment processing experience.
