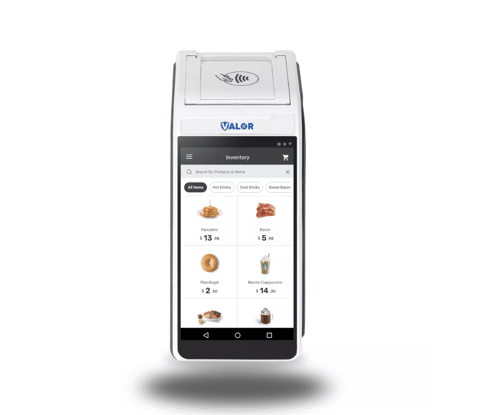

Valor VL500 Technical Characteristics

Please refer to the Hardware Matrix for the VL500 Series to verify additional compatibility by partner.

Category	Details
Processor	High Speed Quad-Core 32-bit Processor plus Secure MCU
Operating System	Android 7.1.2
Memory	Flash/RAM: 8GB / 1GB Micro-SD Socket: Yes
Display	5.5" 1280 × 720 Color TFT Capacitive Touch Display
Card Reader	Magnetic Stripe: ISO 7810, 7811, 7813 Triple Track, Bi-directional User Card: ISO 7816 ID-1 1.8V/3V/5V T=0, T=1 SIM Card: 2 Slots Contactless: ISO 14443 Type A/B \| ISO 18092 NFC \| Mifare & Sony Felica \| 13.56 MHz
Communications Interface Options	Wireless: 4G LTE / 3G / GPRS / WLAN / Bluetooth GPS: Yes
Indicators	Speaker and 4-Pole Audio Jack \| Microphone
Keypad	Virtual Keypad (Supports PIN on Touch)
Printer	57mm × 40mm Paper Roll \| 100mm/sec Print Speed
Camera	5MP AF Rear Camera with Flash \| 2MP Front Camera
Software	SDK \| KMS \| TMS \| GDB \| CTOS Library \| ISO 8583 Library \| Crypto Library
Crypto	TRNG \| DES \| TDES \| AES \| RSA \| MK/SK \| DUKPT
Power Supply	DC: 5V / 2A Battery: 6000mAh / 3.7V Li-ion Rechargeable Battery
Dimensions (mm)	200(L) × 78(W) × 56(H)
Weight	495g
Environment	Operating Temperature: −10°C to 70°C Storage Temperature: −20°C to 70°C Relative Humidity: 5% to 90% non-condensing
Additional Features	Charging Base \| Multi-function Dock (Ethernet, Wi-Fi Access Point, USB-A, RS232)
Certifications	PCI PTS 6.x \| EMV L1/L2 \| PayWave \| PayPass \| ExpressPay \| D-PAS \| Interac Flash \| J-Speedy \| Felica \| UnionPay UICS \| TQM \| PBOC L1/L2
