PAX SP30 Integrated PIN pad Technical Characteristics

Please refer to the Hardware Matrix for the PAX SP30 Integrated PIN Pad Series to verify additional compatibility by partner.

This device has reached end-of-life status and is available for boarding exclusively as customer-owned equipment.

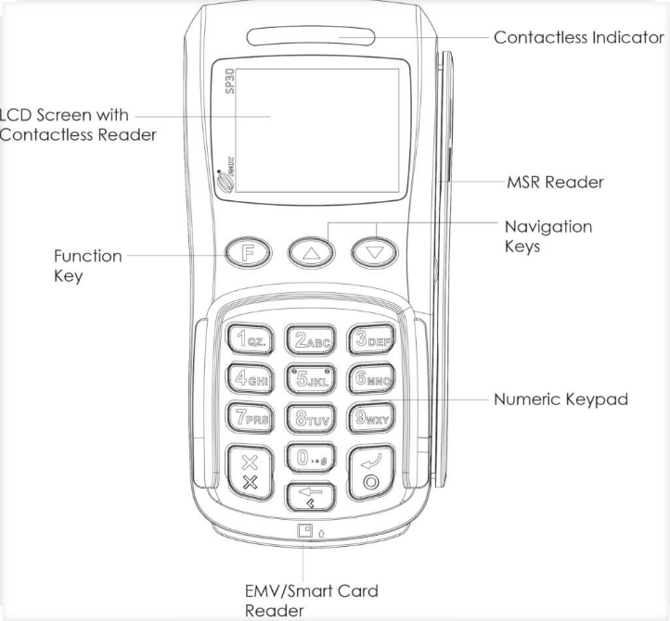

SP30 — Main Features

Programmable
2.4" TFT QVGA backlit display
10 numeric & 6 function keys
Optional external power supply (5VDC, 1A)

Use Cases

Standalone countertop terminal
PIN pad configuration for integrated setups
Optional contactless acceptance

Category	Terminal	PIN Pad
Application / Integration	Fully integrated or semi-integrated; accessory options	Optional (host-controlled)
Processor	32-bit ARM11	Same
Memory	192MB (128MB Flash, 64MB RAM)	Optional
Display	2.4" (320 × 240) TFT QVGA; backlit; capacitive touch	2.4" (320 × 240) QVGA; backlit
Keypad	10 numeric/alphabet keys, 6 function keys	10 numeric + 6 function keys
Card Reader Types	Magnetic Stripe, Smart Card, Contactless Card	Smart Card (PIN entry); contactless optional
SAM Slots	3 × SAMs	Optional
Communication	USB/OTG, Mini-USB; terminal interface; Ethernet; RS232 via USB-to-serial or RS232 only	USB
Peripheral Ports	Multi-functional port; PIN pad/RS232; RJ45 Ethernet	N/A
Power Supply	Input 100–240VAC 50/60Hz; Output 5VDC, 1A	N/A
Physical	Approx. 137.7 × 67.3 × 21.8 mm	Compact handheld form factor
Certifications	PCI PTS 4.x SRED \| EMV L1 & L2 \| EMV Contactless L1 \| Visa payWave \| Mastercard PayPass \| American ExpressPay \| Discover D-PAS \| Interac Flash \| JCB J/Speedy \| UnionPay QuickPass

Note: Looking to better understand the PAX SP30 Integrated PIN Pad and its capabilities? All Quick Reference Guide resources mentioned here are available for download, perfect for sharing with your team or reviewing offline to see how the PAX SP30 Integrated PIN Pad can streamline your payment processing experience.
