PAX S920 Mobile Payment Technical Characteristics

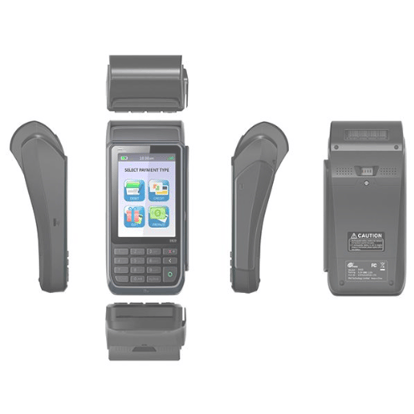

PAX S920 Terminal Images

Please refer to the Hardware Matrix for the PAX S920 Mobile Payment Terminal Series to verify additional compatibility by partner.

PAX S920 Verticals (1)

Features & Benefits

Key Highlights

  • High-speed ARM11 processor
  • Large memory capacity
  • USB & 3G connectivity
  • Supports PSTN, GPRS, 3G, Ethernet, and Wi-Fi
  • High-speed thermal printer with smooth operation

Optional Built-in Contactless

  • Mastercard Contactless
  • Visa payWave
  • American ExpressPay
  • Discover D-PAS
  • JCB J/Speedy

Specifications

CategoryDetails
Processor32-bit ARM11
Memory System: 16MB (Flash) + 64MB DDR
Expansion: microSD/TF card up to 32GB
Display2.8" TFT color LCD, 320 × 240 (QVGA), touchscreen
Keypad 10 numeric keys, 4 function keys, 1 power key
Printer Thermal printer, up to 100mm/s; 57–58mm paper width, 50mm roll diameter
Magnetic Card Reader Triple track (1/2/3), bi-directional
Smart Card Reader EMV L1/L2 certified
Contactless Card Reader Supports Mastercard Contactless, Visa payWave, American ExpressPay, Discover D-PAS, and JCB J/Speedy
Communication PSTN, GPRS, 3G (WCDMA), Ethernet, Wi-Fi (optional)
Card Slots 3 × SAM, 1 × SIM
Peripheral Ports RS232 (Pinpad), USB Host, Mini-USB (OTG), Power port
Security DUKPT, MK/SK key management; RSA, AES, and 3DES encryption
Environmental Operating Temperature: 0°C to 45°C (32°F to 113°F)
Storage Temperature: −20°C to 70°C (−4°F to 158°F)
Relative Humidity: 5%–95% RH, non-condensing
Power Supply Input: 100–240V AC, 50/60Hz | Output: 9V DC, 1.5A
Physical Dimensions: 216 × 95 × 59mm | Weight: 351g (approx.)
Certifications PCI PTS 4.x SRED | EMV L1/L2 | EMV Contactless L1 | Visa payWave | Mastercard Contactless | American ExpressPay | Discover D-PAS | JCB J/Speedy

Note: Looking to better understand the PAX S920 Mobile Payment Terminal and its capabilities? All Quick Reference Guide resources mentioned here are available for download, perfect for sharing with your team or reviewing offline to see how the PAX S920 Mobile Payment Terminal can streamline your payment processing experience.
