PAX S80 Countertop Payment Terminal Technical Characteristics

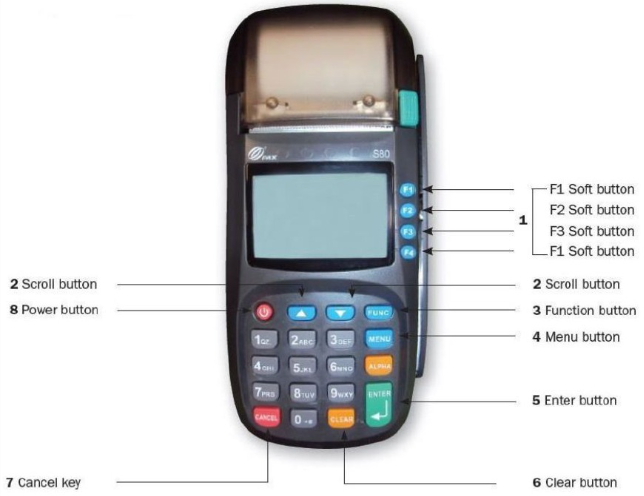

PAX S80 Terminal Image

Please refer to the Hardware Matrix for the PAX S80 Countertop Terminal Series to verify additional compatibility by partner.

This device has reached end-of-life status and is available for boarding exclusively as customer-owned equipment.

Features & Benefits

Highlights

  • High-speed ARM11 processor
  • Large memory capacity
  • USB & 3G connectivity
  • PSTN, GPRS, 3G, Ethernet, Wi-Fi
  • High-speed thermal printer

Built-in Contactless (Optional)

  • Mastercard Contactless
  • Visa payWave
  • American ExpressPay
  • Discover D-PAS
  • JCB J/Speedy

Specifications

CategoryDetails
Processor32-bit ARM11
Memory System: 16MB (Flash) + 64MB DDR
Expansion: microSD/TF card (up to 32GB)
Display2.8" TFT color LCD, 320 × 240 (QVGA) with touchscreen
Keypad 10 numeric/letter keys, 4 function keys, 1 power (ON/OFF)
Printer Thermal printer, up to ~100mm/s; 57–58 mm paper, Ø 50 mm roll
Magnetic Card Reader Tracks 1/2/3; bi-directional
Smart Card Reader EMV L1/L2 certified
Contactless Card Reader (optional) Mastercard Contactless | Visa payWave | American ExpressPay | Discover D-PAS | JCB J/Speedy
Communication PSTN | GPRS | 3G (WCDMA) | Ethernet | Wi-Fi (optional)
Card Slots 3 × SAM | 1 × SIM
Peripheral Ports RS232 (Pinpad) | USB Host | Mini-USB (OTG) | Power port
Security DUKPT | MK/SK key management | RSA, AES, 3DES
Environmental Operating: 0°C – 45°C (32°F – 113°F)
Storage: −20°C – 70°C (−4°F – 158°F)
Humidity: 5% – 95% RH, non-condensing
Voltage / Power Input: 100–240VAC, 50/60Hz | Output: 9V DC, 1.5A
Physical Length 216 mm | Width 95 mm | Height 59 mm
Weight≈351 g
Certifications PCI PTS 4.x SRED | EMV L1/L2 | EMV Contactless L1 | Visa payWave | Mastercard Contactless | American ExpressPay | Discover D-PAS | JCB J/Speedy

Note: Looking to better understand the PAX S80 Countertop Terminal and its capabilities? All Quick Reference Guide resources mentioned here are available for download, perfect for sharing with your team or reviewing offline to see how the PAX S80 Countertop Terminal can streamline your payment processing experience.
