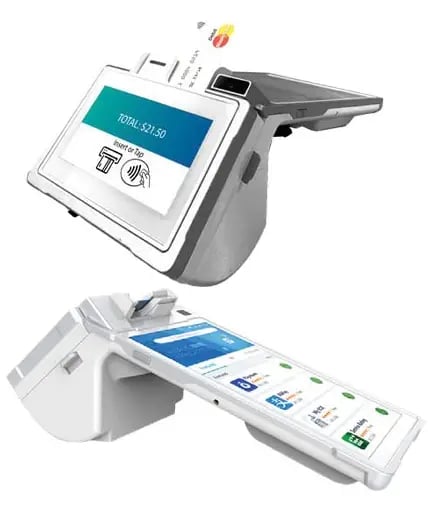

PAX E600 Smart POS Technical Characteristics

Please refer to the Hardware Matrix for the PAX E600 Smart POS Series to verify additional compatibility by partner.

Main Features

Highlights

PAXBiz® powered by Android™
8" (1280 × 800) IPS touchscreen
Integrated Q20 payment module with 4.3" (480 × 272) color touchscreen
2" high-speed thermal printer

Connectivity & I/O

Wi-Fi (2.4GHz), optional 4G, Bluetooth®
1 × Micro-USB 2.0, 1 × Audio Jack, 1 × Charging Port
Customer-facing and merchant-facing display options
Multi-function charging base

Additional Specs

Category	Details
Memory	1GB DDR + 8GB eMMC \| 1 × MicroSD slot (up to 128GB)
Processor	Quad-core Cortex-A53, 1.4GHz
Payment Module	Q20: Cortex-A7 @ ~527MHz, 4.3" (480 × 272) color touchscreen
Card Reader Types	Hybrid reader: Magnetic Stripe & Smart Card \| Contactless antenna around main LCD
Communications	Wi-Fi (2.4GHz) with hotspot support \| Optional 4G \| Bluetooth® wireless
Cameras	Rear: 0.3MP fixed-focus \| Front: 5MP fixed-focus \| Reads 1D & 2D barcodes
Battery	7.2V / 2600mAh rechargeable Li-ion
Physical	L × W × H: 11.2 × 5.2 × 4.6 in \| Weight: 3.1 lb (incl. battery)
Certifications	PCI PTS 5.x, SRED \| EMV L1/L2 \| EMV Contactless L1 \| Mastercard Contactless \| Visa payWave \| American ExpressPay \| Discover D-PAS \| JCB J/Speedy \| Interac Flash \| UnionPay QuickPass \| Mastercard TQM

Note: Looking to better understand the PAX E600 Smart POS and its capabilities? All Quick Reference Guide resources mentioned here are available for download, perfect for sharing with your team or reviewing offline to see how the PAX E600 Smart POS can streamline your payment processing experience.
