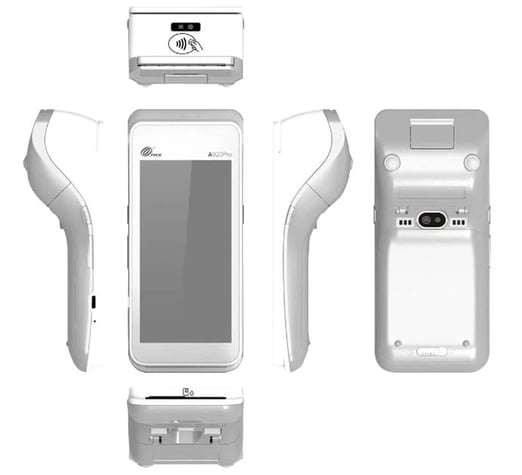

PAX A920 Smart Mobile Technical Characteristics

Please refer to the Hardware Matrix for the PAX Android A920 Smart Mobile Series to verify additional compatibility by partner.

Category	Details
Operating System	PAXBiz® powered by Android™ 7.1
Processor	Cortex A9 + ARM
Memory	Standard: 8GB eMMC Flash + 1GB DDR RAM Optional: 16GB eMMC Flash + 2GB DDR RAM Expansion: MicroSD card slot (supports up to 64GB)
Card Readers	Chip & PIN \| NFC Contactless \| Magnetic Stripe
Cameras	Front: 0.3MP fixed-focus Rear: 5.0MP fixed-focus
Display	4" IPS WVGA (480 × 800) pixels, capacitive multi-touch screen
Comms Configurations	4G + Bluetooth® + Wi-Fi (2.4GHz) Optional: 4G + Bluetooth® 4.2 + Wi-Fi 5GHz
Battery	4,800mAh \| 3.7V Li-ion rechargeable battery
Printer	58mm thermal printer \| paper roll diameter: 40mm
SIM / SAM	1 × Micro SIM + 2 × SAM (optional: 2 × Micro SIM + 1 × SAM)
Positioning	GPS \| GLONASS \| Beidou
Keys / Buttons	Power \| ON/OFF \| Volume+ \| Volume− \| Quick Scan Button
Audio	1 × Speaker \| 1 × Microphone
Ports	1 × Type-C (OTG) \| 1 × Micro USB
Adapter	Input: 100–240V AC, 50/60Hz \| Output: 5.0V DC, 2.0A
Physical	163 × 76 × 60.8mm \| 415g (including battery)
Environmental	Operating Temperature: 0°C – 50°C (32°F – 122°F) Storage Temperature: −20°C – 70°C (−4°F – 158°F) Humidity: 5% – 93%, non-condensing
Accessories	Charging Base \| Leather Case \| Shoulder Strap Optional: HUB \| LAN \| USB \| Charging Dock
Certifications	PCI PTS 5.x SRED \| EMV L1/L2 \| EMV Contactless L1 \| Visa payWave \| MasterCard Contactless \| American ExpressPay \| Discover D-PAS \| UnionPay QuickPass \| Interac Flash \| JCB J/Speedy \| MasterCard TQM \| CE \| FCC \| IC \| RoHS

Note: Looking to better understand the PAX Android A920 Smart Mobile and its capabilities? All Quick 0Reference Guide resources mentioned here are available for download, perfect for sharing with your team or reviewing offline to see how the PAX Android A920 Smart Mobile can streamline your payment processing experience.
