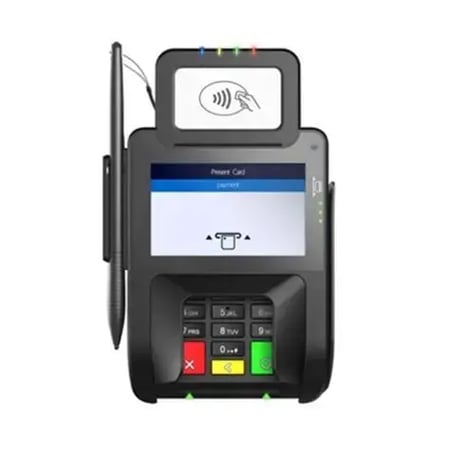

PAX Q30 Linux Smart PIN Pad Technical Characteristics

Please refer to the Hardware Matrix for the PAX Q30 Linux Smart PIN Pad Series to verify additional compatibility by partner.

Category	Details
Operating System	Prolin
Processor	Cortex A9
Memory	512MB FLASH + 512MB DDR RAM Extended microSD card slot up to 32GB
Card Readers	Chip & PIN \| NFC Contactless \| Magnetic Stripe
Cameras	Optional 0.3MP front-facing
Display	4" TFT WVGA (800 × 480) pixels \| Touch screen \| Electronic signature capture
Comms Configurations	RS232 \| Fast Ethernet \| USB 2.0 \| Wi-Fi 2.4/5GHz (optional) \| Bluetooth® (optional)
SIM / SAM	3 × PSAM card reader \| 2 × SIM card slot maximum
Keys / Buttons	13 keys: 0–9 \| Enter \| Cancel \| Clear \| Back-lighting \| Reset button
Audio	1 × Buzzer (1 speaker optional)
Ports	Single multi-port connector \| 1 × RS232 \| 1 × USB 2.0 OTG \| 1 × Ethernet
Physical	199 × 112 × 53 mm \| 400 g
Environmental	Operating: 0°C – 50°C (32°F – 122°F) Storage: −20°C – 70°C (−4°F – 158°F) Humidity: 5% – 93% relative, non-condensing
Power Supply	Input: 100–240V AC, 50/60Hz \| Output: 5.0V DC, 1.0A
Accessories	PS200 pole stand \| Privacy shields \| Multiple cabling options
Certifications	PCI PTS 5.x SRED \| EMV L1 & L2 \| EMV Contactless L1 \| Visa payWave \| Mastercard Contactless \| JCB J-QICS \| Amex ExpressPay \| Discover D-PAS \| JCB J/Speedy \| Interac Flash \| Mastercard TQM \| Common.SECC UKCC \| CE \| RoHS

Note: Looking to better understand the PAX Q30 Smart PIN Pad and its capabilities? All Quick Reference Guide resources mentioned here are available for download, perfect for sharing with your team or reviewing offline to see how the PAX Q30 Smart PIN Pad can streamline your payment processing experience.
